SH400 (TH400)

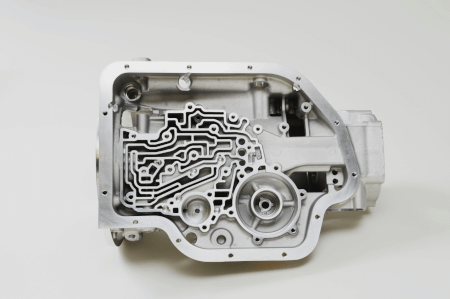

Redesigned and strengthened, our Super Hydra 400® transmission cases address weaknesses and add features that improve every aspect of the Turbo 400. We build our Super Hydra 400® cases with full 360 degree internal case “lugs” that retain the center support and pressure plate. Not only are they lightweight and offer minimal drag, but their abuse tolerance has been kicked up several notches to handle high-horsepower levels without ending up with a ruined transmission.
Super Hydra 400®’s are massively tough, ductile, and leak-free with the strength to handle drag racing and rock crawling as well as desert or short-course truck racing. Their modular, two-piece design allows them to be used with all popular engines by simply changing bolt-on Superglide bellhousings. Our Super Hydra 400® transmission cases are offered in drag/street and off-road versions, each with features geared specifically for those applications and are SFI 4.1 certified*.
Features:
Speedometer and governor provisions
Improved billet steel pressure plate
Oversized snap ring
Longer band anchor pins captured by oversize bosses
Additional dipstick hole on driver side
Multiple external pressure taps allow for monitoring of circuit pressures
Accept all style oil pumps, including 8-bolt and vari-pitch designs
Heli-coiled bellhousing and oil pump threads
Pre-machined to fit larger custom planetary gear carriers
Off-road also includes:
Pre-machined side oil feed feature for 4L80-E center support
Front band anchor tapped for custom ARP anchor bolt (supplied)
Pre-machined bosses for input and output speed sensors
Un-machined speedometer boss for maximized 4×4 transfer case load support
Oil line ports machined for -AN fittings
Pre-machined with additional stud/nut clearance for Advance Adapters transfer case adapters.
Available with a 4L80-E size pressure plate
