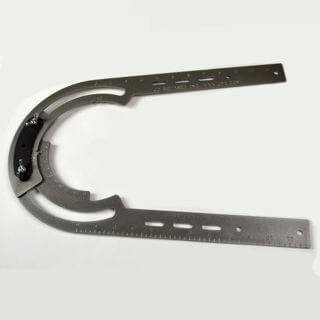

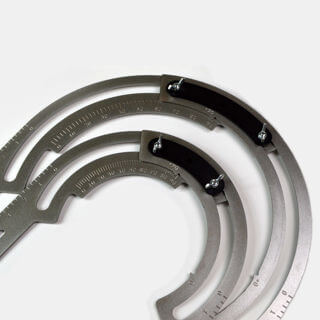

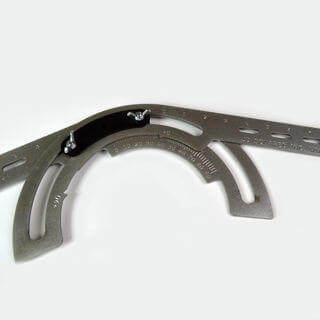

The Bendicator protractor will make your chassis building life easier! Use the protractor to mock up your bend before you even touch a piece of tubing. It will allow you to determine and visualize the bend angle and how the tubing will fit to avoid incorrect bends and wasted tubing.

Bendicator protractors are CNC engraved and made out of powder coated 12 gauge steel.

How do you know which Protractor to buy?

The protractor is specific to the Outer Diameter (OD) and Center Line Radius (CLR) of your die. To calculate the size use the below formula:

CLR + Half of the OD + .125" = Protractor Size

Example with 1.75" (5.5) Die Set

5.5" + .875 + .125" = 6.5"

If you get a number not listed on the available protractor list, round up to the nearest 1/8".
