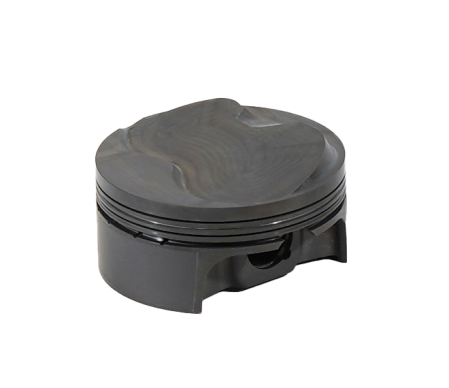

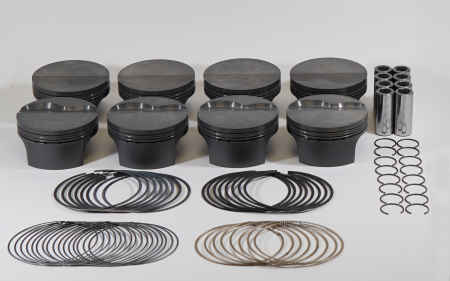

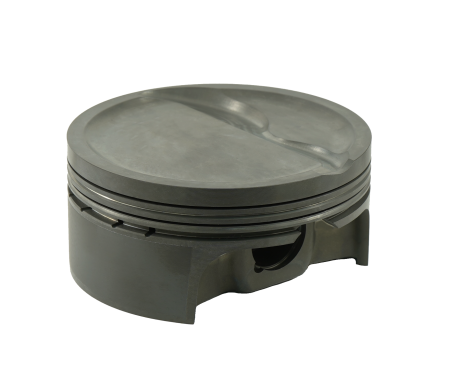

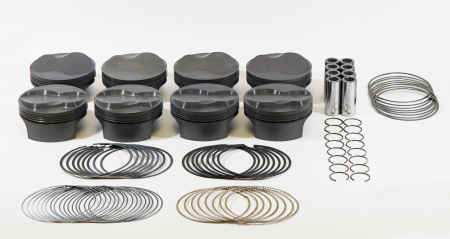

LSX Combo Flat Top, Dish, & Dome PowerPak Piston Kits
LSX Combo Flat Top, Dish, & Dome PowerPak Piston Kits
LSX Combo Flat Top, Dish, & Dome PowerPak Piston Kits
LSX Combo Flat Top, Dish, & Dome PowerPak Piston Kits

LSX Combo Flat Top, Dish, & Dome PowerPak Piston Kits

MAHLE Motorsports’ all new 2618 alloy, LSX COMBO, Power Pak Pistons were designed for high output, naturally aspirated and power adder applications with versatility and budget in mind.
Why sweat over which valve pocket layout you need when assembling your short block? These pistons accommodate LS1 style cathedral port, LS3 style rectangle port and LS7 style cylinder heads. You no longer have to be locked into a single top end configuration with your piston selection.
Features include:
•High strength, 2618 Aluminum alloy, slipper skirt forging
•0.250” top land and 0.200” 2nd land thickness*
*Exception 1.050” CH: 0.235” top land and 0.170” 2nd land
•HV385 coated steel 1.0mm top, napier 1.0mm 2nd & 2.0mm oil ring set
•Dual coated with phosphate and MAHLE's Grafal® skirt coating for reduced drag and wear
•Combination valve pockets that cover LS1, LS3 and LS7 style cylinder heads
•Listings for FLAT TOPS, DISHES and DOMES
•Compression ratios available from 10:1 – 14:1
•Bore options range from 4.000” – 4.185”
•Compression heights available for:
•1.330” for stock, 3.622”, stroke and stock, 6.098”, connecting rod with 0.945” pin Ø
•1.304” for stock, 3.622”, stroke and 6.125” connecting rod with 0.927” pin Ø
•1.110” for 4.000” stroke and 6.125” connecting rod with 0.927” pin Ø
•1.050” for 4.125” stroke and 6.125” connecting rod with 0.927” pin Ø
